C-130 Paratroop Door Negator Assembly Upgrade
"MISSION READY STARTS WITH CREW SAFETY."
Easier paratroop door operation. Less effort. Less strain. Reduce the risk of back injury. Stay focused on the mission.

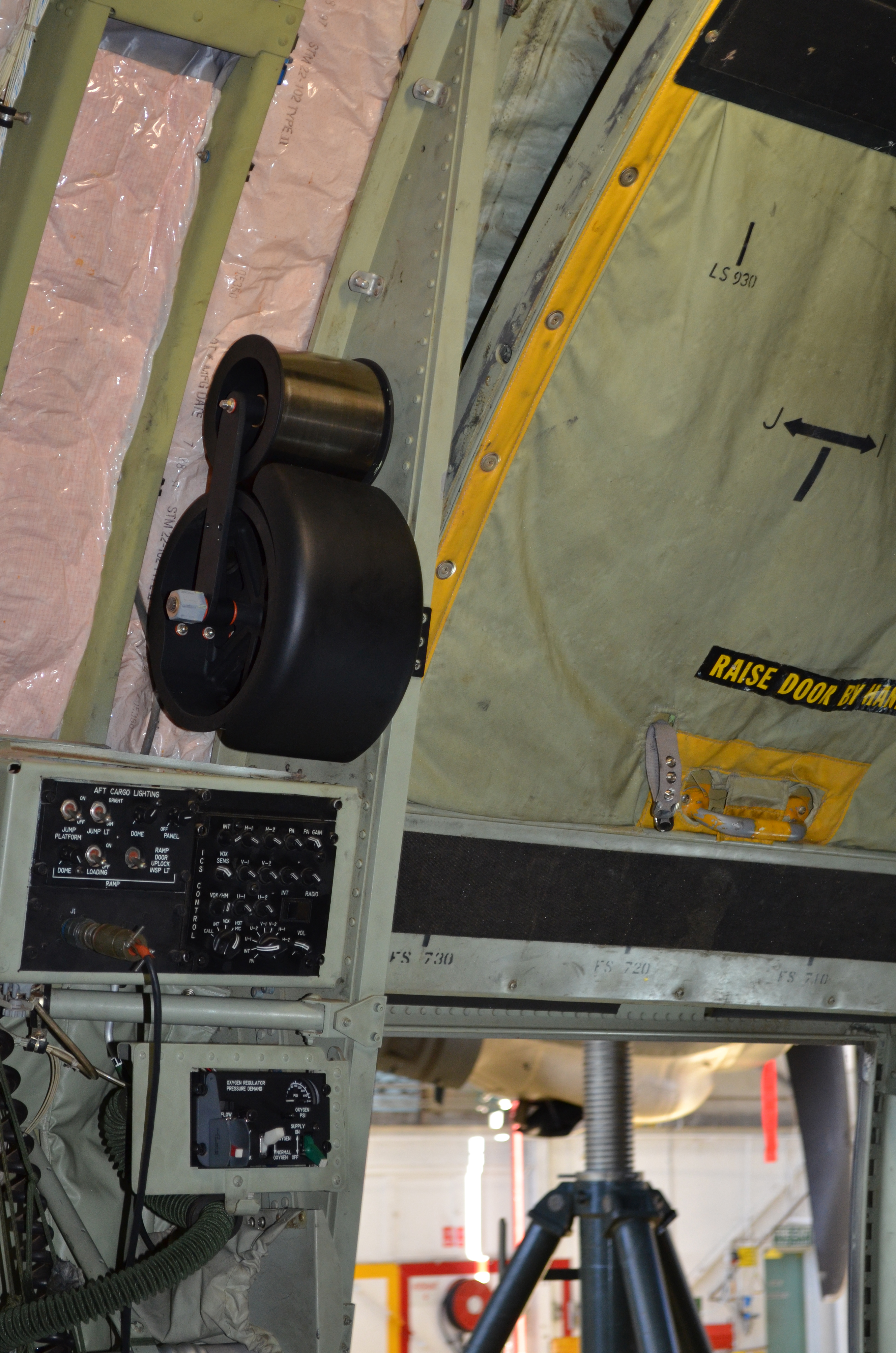

AMCE upgraded negator assembly installed in the paratroop door track on an operational C-130J Hercules.
Eliminating a Chronic Tactical Airlift Hazard
The AMCE C-130 Paratroop Door Negator Assembly Upgrade is a flight-proven, fully certified mechanical enhancement engineered to eliminate one of the most persistent and costly occupational health and safety (OH&S) hazards in tactical military airlift: Loadmaster lower back injuries sustained during manual paratroop door operations.
Combining an upgraded high-stiffness counterbalance spring with AMCE's patented Slide Spanner installation tool, this system delivers effortless door operation for aircrew and unprecedented safety for ground maintainers — with zero permanent modification to the aircraft.
14+ Years Flawless Operational Record Across 5 Allied Air Forces
Introduced into active service with the Royal Australian Air Force (RAAF) C-130J fleet in 2012, the AMCE Negator upgrade has achieved flawless operational performance:
Core System Features & Innovations
High-Stiffness Counterbalance Spring
Re-engineered coiled negator spring strip geometry and metallurgy provide substantially greater mechanical lift assistance throughout the entire vertical door travel. Available in 50% and 100% lift assist options, transforming a strenuous two-handed lift into a smooth, controlled motion.
Patented Slide Spanner Maintenance Tool
Legacy spring swaps required two maintainers fighting against high spring tension, posing severe risks of knuckle crush and violent spring recoil. The patented Slide Spanner allows a single maintainer to safely wind, control, and unwind the spring without manual strain.
100% Reversible Drop-In Installation
Utilizes existing airframe fastener locations, roller tracks, and mounting provisions. No drilling, cutting, or structural alterations required. Fully reversible at any maintenance interval with standard flight line procedures.
Left-Hand Assembly Engineering Schematic
High-precision engineering CAD drawing of Negator LH Assembly and roller linkage.
Patented Slide Spanner in Operation
Single technician utilizing the patented Slide Spanner on the flight line.
Technical Data & Airworthiness Standards
| Specification Parameter | Engineering Detail |
|---|---|
| Applicable Aircraft | Lockheed Martin C-130H, C-130J, C-130J-30 (all global variants) |
| Counterbalance Options | Option 1: 50% Lift Assistance | Option 2: 100% Lift Assistance |
| Structural Certification | MIL-S-5700 Structural Criteria, Airworthiness approved |
| Flammability Conformance | FAR 25.853 / CS 25.853 transport category flammability compliant |
| Operating Temperature | -54°C to +71°C continuous operational envelope |
| Maintenance Technician Requirement | 1 Technician using Slide Spanner (reduced from 2 on legacy OEM) |
| Installation Downtime | < 30 minutes per paratroop door; 100% reversible |
| Supply Classification | Commercial-Off-The-Shelf (COTS) with NATO Stock Numbers (NSN) |
